25G SFP28 DAC

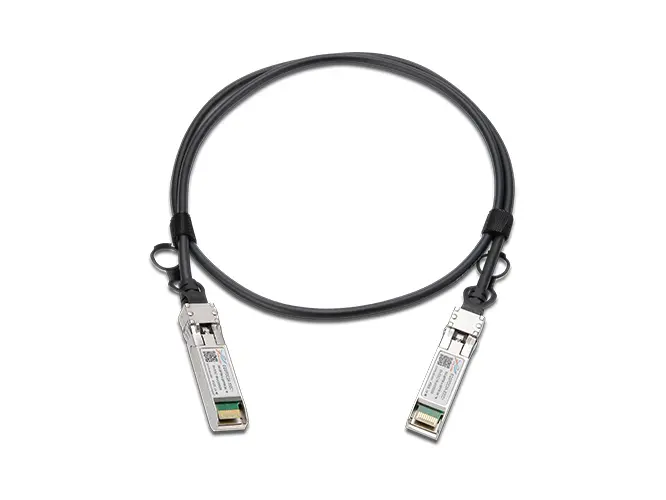

ETU-LINK 25G SFP28 DAC (Direct Attach Cable) is a high-speed direct connection cable used to connect servers and switches and other devices, supporting a transmission rate of 25G. It consists of a passive copper cable and two SFP28 transceiver modules. This cable provides high-speed data transmission over short distances, offering cost-effectiveness and easy installation.

parameter

product details

Features

● Up to 25.78125 Gbps data rate

● Up to 5 meter transmission

● Hot-pluggable SFP 20PIN footprint

● Improved Pluggable Form Factor(IPF)

● Compliant for enhanced EMI/EMC performance

● Compatible to SFP28 MSA

● Compatible to SFF-8402 and SFF-8432

● Temperature Range: 0~ 70 °C

● RoHS Compatible

Application

● 25G Etherne

● Servers, switches, storage and host card adapter

Ordering information

P/N	Description	Data Sheet	Data Rate	Cable Type	Cable Diameter	Cable Length	Temp.(℃)
EDSP2X-1	SFP28 DAC	DOWNLOAD	25G	Passive Cable	30AWG	1M	0~70
EDSP2X-2	SFP28 DAC	DOWNLOAD	25G	Passive Cable	30AWG	2M	0~70
EDSP2X-3	SFP28 DAC	DOWNLOAD	25G	Passive Cable	30AWG	3M	0~70
EDSP2X-5-26	SFP28 DAC	DOWNLOAD	25G	Passive Cable	26AWG	5M	0~70
