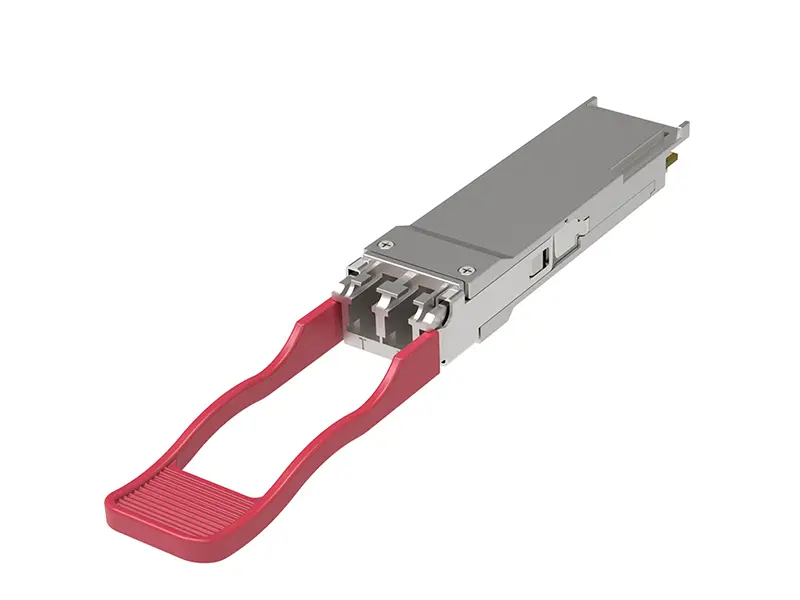

100G QSFP28 Single Lambda

ETU-LINK 100G QSFP28 Single Lambda optical module adopts the Single Lambda technology. This technology enables the transmission of 100Gbps data over a single wavelength, eliminating the need for traditional 4-channel parallel transmission. Therefore, compared to traditional 100G QSFP28 modules, the Single Lambda technology reduces the complexity and power consumption of optical components within the optical module, making network upgrades more convenient.

parameter

product details

Features

● Lane signaling rate 106.25Gb/s with PAM4

● 4x25.78Gb/s with NRZ electrical interface (CAUI-4)

● Support KP4 FEC inside the module

● High speed I/O electrical interface

● I2C interface with integrated Digital Diagnostic monitoring

● QSFP28 MSA package with simplex LC connector

● Single +3.3V power supply

● Operating case temperature: 0 to +70 °C

● Compliant to 802.3cu, SFF-8636&SFF-8679 standard

● Compliant to 100G Lambda MSA 100G-LR1/ER1 Optical Specifications

● Complies with EU Directive 2015/863/EU

Application

● Data Center

● 100 Gigabit Ethernet

● Switch to Switch interface

● Router/Server interface

Ordering information

P/N	Description	Data Sheet	Data Rate	Wavelength	Distance	Output Power	Sensitivity(OMA)	Connector	Temp.(℃)	Laser Type
EQP31Y-10D	QSFP28 LR1	DOWNLOAD	100Gb/s	1310nm	10km	-1.4~4.5	-7+TECQ	LC	0~70	EML+PIN
EQP31Y-30D	QSFP28 ER1	DOWNLOAD	100Gb/s	1310nm	30km	0~5.6	-13.9+TECQ	LC	0~70	EML+APD
EQP31Y-05D	QSFP28 DR1	DOWNLOAD	100Gb/s	1310nm	500m	-2.9~4.5	-3.9 –5.3+ SECQ	LC	0~70	EML+PIN
EQP31Y-2D	QSFP28 FR1	DOWNLOAD	100Gb/s	1310nm	2km	-2.4~4.2	-4.5 –5.9+ SECQ	LC	0~70	EML+PIN
EQP31Y-40D	QSFP28 ER1	DOWNLOAD	100Gb/s	1310nm	40km	1.7~7.1	-13.8 -15.2+TECQ	LC	0~70	EML+APD
